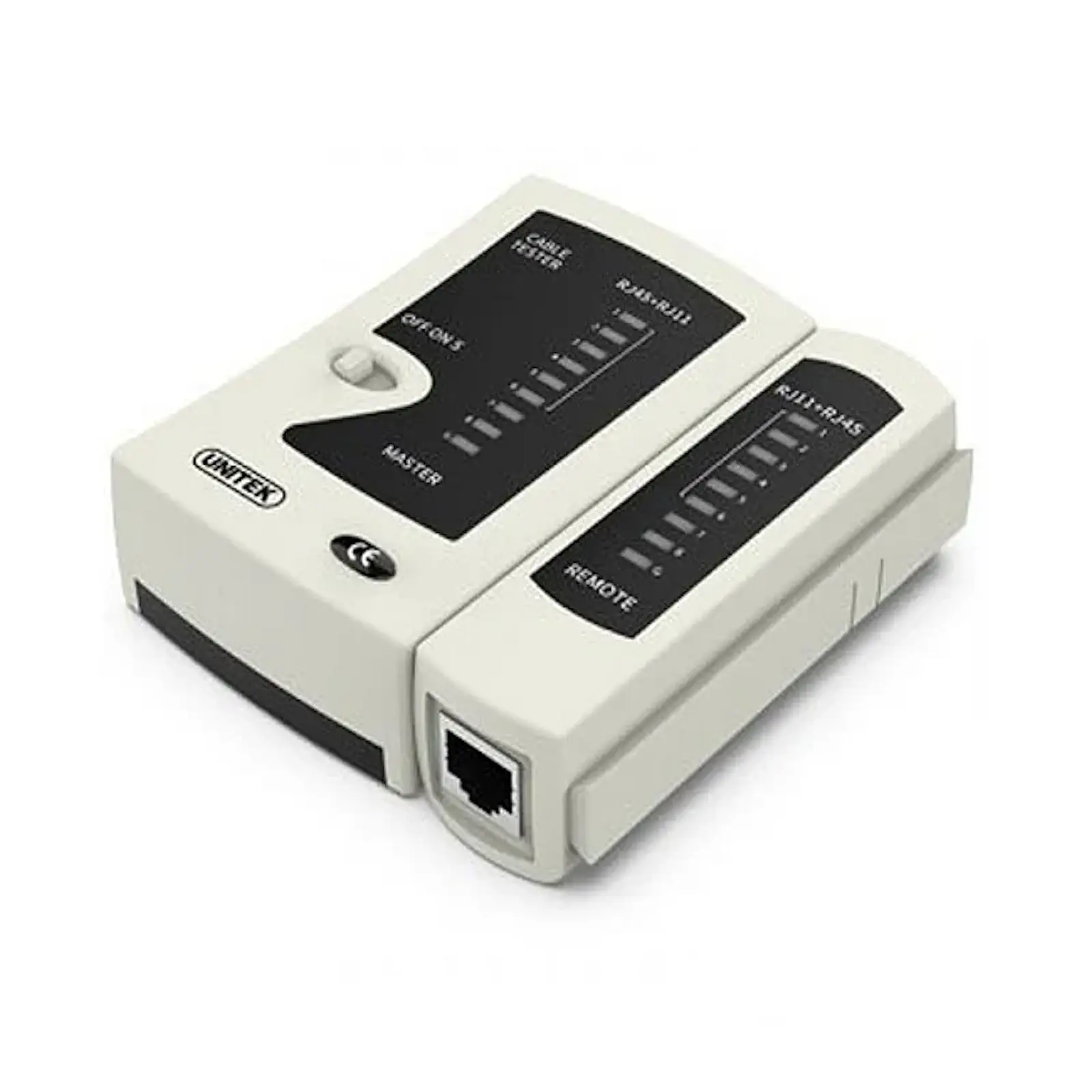

UNITEK OT40GY Network Cable Tester for RJ45 Ethernet & RJ11 Telephone Lines

UNITEK OT40GY Network Cable Tester for RJ45 Ethernet & RJ11 Telephone Lines – Portable LAN Tester with LED Display, 9V Battery Powered

Stop guessing and start knowing. UNITEK RJ45 Coupler Gigabit Ethernet Connector 1000Mbps Speed TIA/EIA 568-C.2 Compliant The UNITEK OT40GY Network Cable Tester is the essential, no-fuss diagnostic tool for anyone who works with data or telephone cables. This compact device takes the mystery out of cable troubleshooting, allowing you to quickly verify, diagnose, and fix wiring issues with confidence.

Instant Diagnosis for RJ45 & RJ11 Cables
First and foremost, this tester provides dual-interface functionality. It can test standard 8P8C RJ45 Ethernet cables (Cat5, Cat5e, Cat6, Cat7) as well as 6P4C/6P2C RJ11/RJ12 telephone cables. Consequently, whether you’re setting up a home office network or installing a telephone line, this one tool handles both tasks efficiently.

Visual LED Feedback for Clear Results
The key feature is its intuitive LED-based diagnostic system. The main unit sends a signal sequence down each wire, and the corresponding LED on the remote unit lights up. A correctly wired cable shows a sequential 1-to-8 (or 1-to-6) LED chase. Any break, short, or miswire is immediately obvious by a missing, out-of-order, or extra-lit LED, making fault identification effortless. Ensure your gaming room wiring is flawless.

Built for Reliability and Field Use
Designed for durability, the tester features a sturdy PVC housing that can endure the bumps of a tool bag. Powered by a common 9V battery, it’s always ready for use without needing a power outlet. UNITEK HDMI Extender Over Ethernet (150 Meter Range) Essentially, it’s the go-to verification tool for ensuring every cable run, from a simple patch cable to a full office installation, is perfect before deployment.

Products Specifications:

• Model: UNITEK OT40GY
• Test Interfaces:
  RJ45 (8P8C) & RJ11/RJ12 (6P4C/6P2C)
• Testing Modes: Continuity, Short Circuit, Open Circuit, Miswire
• Display:
  LED Indicator Lights (Sequence 1-8 for RJ45, 1-6 for RJ11)
• Power Supply:
  1 x 9V Battery (Typically included)
• Battery Interface: Standard 9V Snap Connector
• Housing Material:
  Durable PVC
• Product Dimensions: Compact and Portable
• Compatibility: Tests Cat5, Cat5e, Cat6, Cat6a, Cat7 Ethernet cables and standard telephone cables.

What’s in the Box?

• 1 x UNITEK OT40GY Main Tester Unit
• 1 x UNITEK OT40GY Remote Unit
• 1 x User Manual

10 FAQs:

1. What types of cables can this tester check?
It can test RJ45 Ethernet cables (used for internet/networking) and RJ11/RJ12 telephone cables. It works on all common categories: Cat5, Cat5e, Cat6, and Cat7.

2. Can it tell me the length of a cable or measure signal quality?
No, this is a basic continuity tester. It checks for wire mapping, shorts, and opens. It does not measure cable length, attenuation, or crosstalk (NEXT). For advanced certification, you would need a professional cable certifier.

3. How do I use it to test an Ethernet cable?
Connect the main unit to one end of the cable and the remote unit to the other end. Turn it on. UNITEK Cat 6 Ethernet Cable (305 Meter) 23AWG Bare Copper, UTP, 250MHz, 1Gbps, Fluke Certified The LEDs will light in sequence from 1 to 8. If all 8 lights chase in order on both units, the cable is good.

5. What does it mean if an LED doesn’t light up?
If an LED fails to light during the sequence, it indicates an open circuit—a break in that specific wire inside the cable.

6. What if two LEDs light up at the same time?
If two LEDs light up simultaneously for the same step, it indicates a short circuit between those two wires inside the cable.

7. Can I use it to test a network cable that is already installed in a wall?
Yes, absolutely. This is one of its primary uses. Plug the main unit into the wall jack and the remote unit into the patch panel or the other end of the cable to test in-wall runs. For a full setup, ensure your network switch is connected properly.

8. Is it suitable for a complete beginner?
Yes, it is very straightforward. UNITEK Cat 6 Ethernet Cable 1000Mbps, 250MHz, 24K Gold-Plated RJ45, UTP Bare Copper The visual LED guide makes it intuitive. The manual provides clear instructions. It’s a great first tool for anyone learning about networking basics.

9. How do I test a telephone (RJ11) cable?
Use the RJ11 ports on both the main and remote units. The tester will then sequence through LEDs 1 through 6 (or 4, depending on the cable), following the same diagnostic principles.

10. Why is this an essential tool for IT work?
It saves immense time and frustration. Instead of replacing hardware or software troubleshooting blindly, you can first conclusively verify the physical cable layer. This simple check can resolve over 50% of perceived “network issues.” Every IT professional’s toolkit should have one.
