1-to-8 HDMI Distribution for Professional Multi-Screen Setups

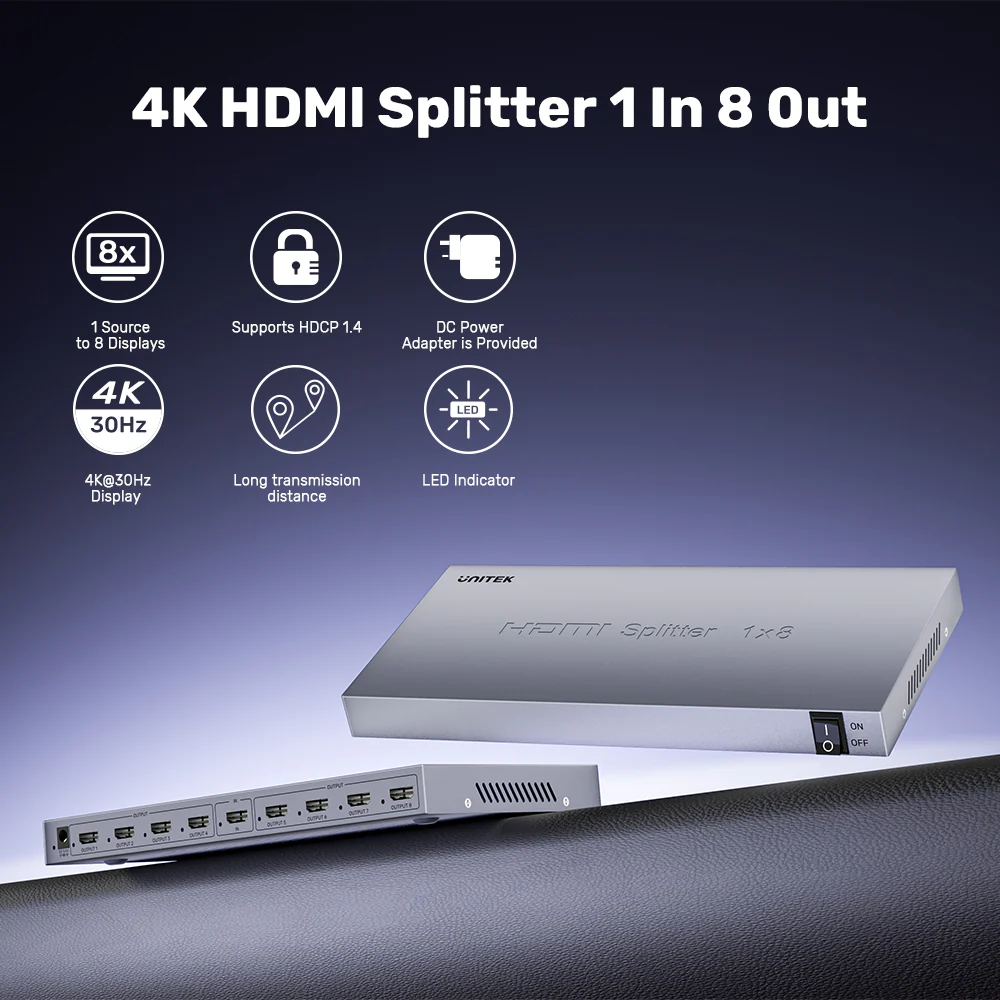

The UNITEK V1132A01-EU 4K HDMI Splitter is designed to distribute one HDMI video and audio source across up to eight compatible displays simultaneously.

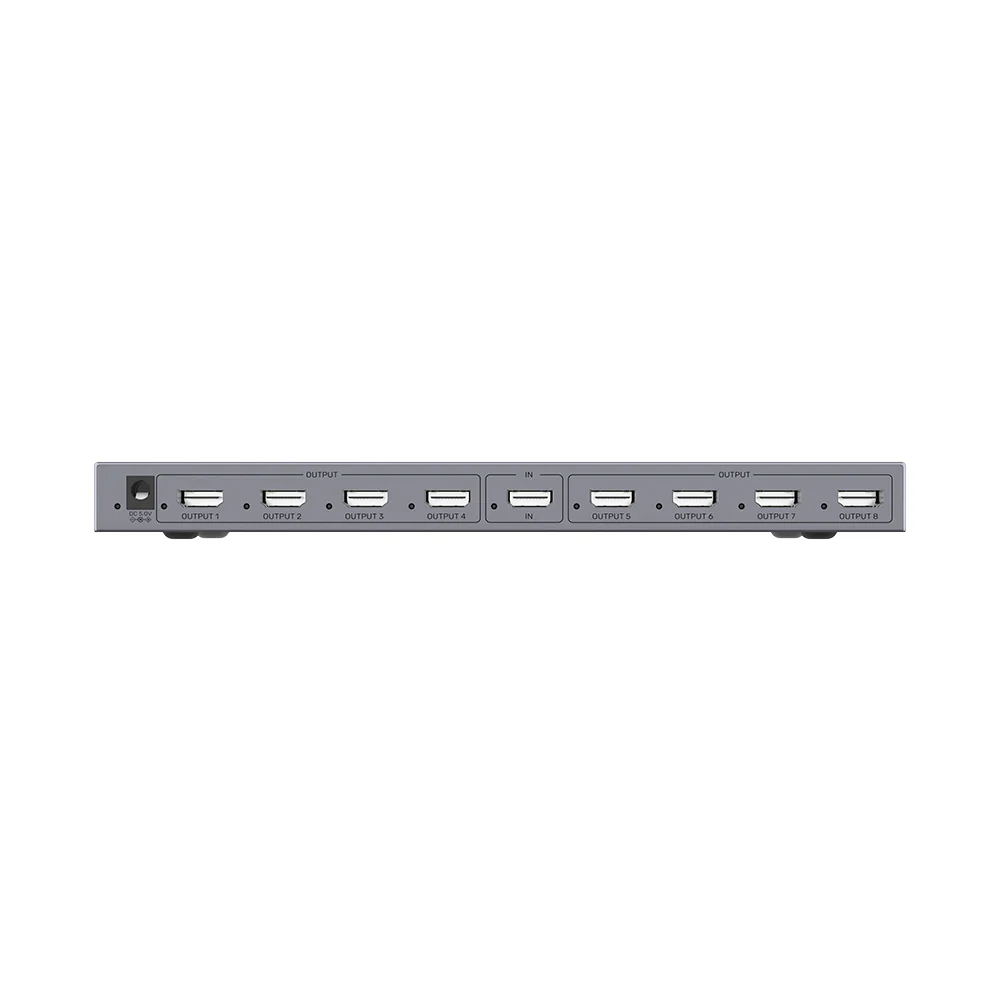

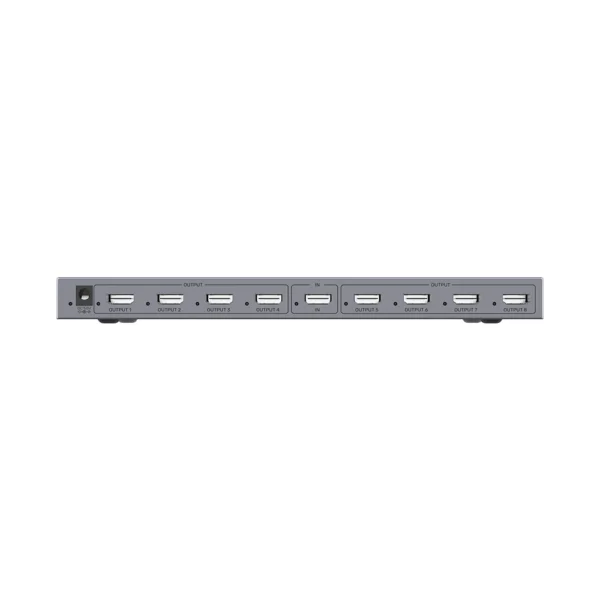

Featuring one HDMI input and eight HDMI outputs, this splitter enables a single connected device to deliver identical content to multiple TVs, monitors or projectors.
It provides a practical solution for installations where the same presentation, video, advertisement or information feed must appear on several screens.
Compatible HDMI source devices may include desktop computers, laptops with HDMI output, media players, gaming consoles, Blu-ray players and other supported AV equipment.
Unlike an HDMI switch that selects between several source devices, the V1132A01-EU duplicates one incoming HDMI signal across its available output connections.
This makes it particularly useful for businesses, educational institutions, commercial display installations and home entertainment environments that require synchronized HDMI content.
When searching for the Best 1 in 8 Out HDMI Splitter in Pakistan, the UNITEK V1132A01-EU offers eight HDMI outputs, 4K UHD support, multi-channel audio compatibility and straightforward installation in a durable metal enclosure.
Check the UNITEK V1132A01-EU Price in Pakistan for exceptional value.
4K 30Hz UHD Video with HDMI 1.4 Compatibility

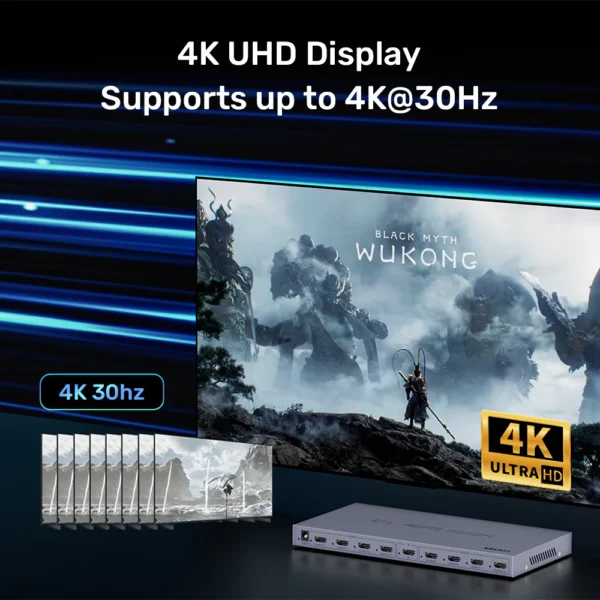

The V1132A01-EU supports maximum video resolution of 3840 x 2160 at 30Hz, allowing compatible Ultra HD source content to be displayed across supported 4K screens.
For installations using lower-resolution displays, the supplied specifications also identify support for 2K at 60Hz and Full HD 1080p at 60Hz.
This provides flexibility when connecting compatible HDMI monitors, projectors and televisions in professional or home environments.
The splitter supports HDMI 1.4 technology, including compatibility with HDMI 1.4b, HDMI 1.3 and HDMI 1.2 standards.
It is also listed as HDCP 1.4a compliant, allowing compatible protected HDMI signals to be distributed when the connected devices meet the required content-protection standards.
Support for compatible Full HD 3D video signals is also included in the supplied product specifications.
Actual video performance depends on the HDMI source, display resolution, refresh-rate support, cable quality and content-protection requirements.
HDMI Audio Distribution for Entertainment and Presentations
Alongside video distribution, the UNITEK V1132A01-EU carries compatible audio signals through HDMI to connected display and audio equipment.
The supplied product specifications identify PCM 2-channel audio and 5.1-channel and 7.1-channel configurations among the supported audio formats.
This allows supported HDMI audio to accompany the duplicated video signal in applications such as multimedia presentations, digital signage, entertainment playback and commercial AV installations.
The splitter is intended to duplicate the incoming HDMI signal rather than generate separate audio or video content for each output.
Audio format availability depends on the source device, receiving equipment and supported HDMI audio capabilities.
For installations requiring synchronized picture and sound across multiple compatible screens, the V1132A01-EU provides a convenient centralized HDMI distribution solution.
Long-Distance HDMI Transmission and Plug-and-Play Setup
The V1132A01-EU is designed for practical HDMI cable installations where the source and displays may be positioned at different locations.

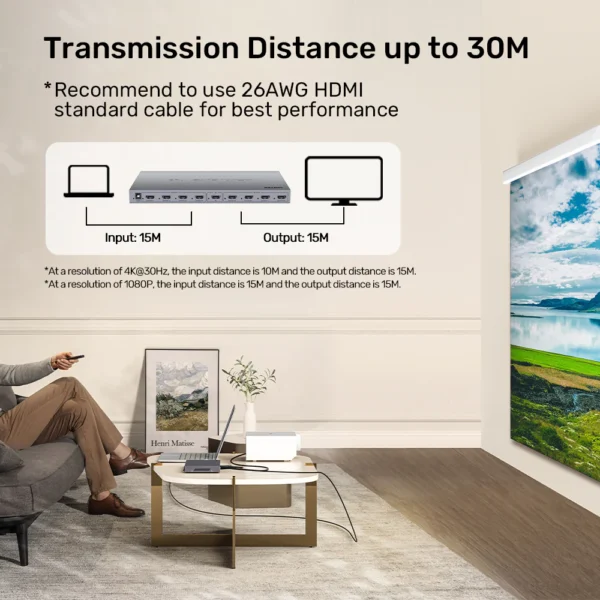

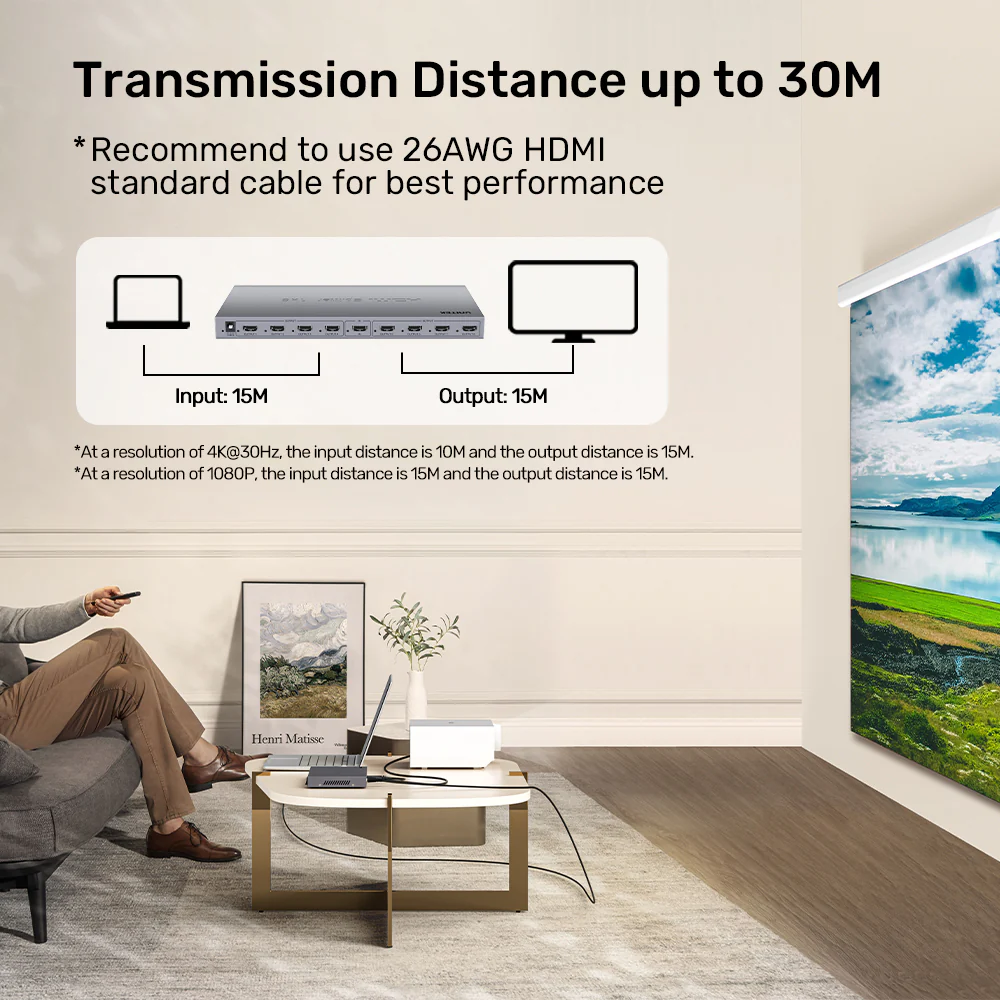

According to the supplied specifications, the rated transmission distances are up to 10 meters for the HDMI input and 15 meters for the HDMI outputs when using the specified 26AWG HDMI standard cables.
These cable-distance ratings make the splitter useful for meeting rooms, retail counters, presentation areas and multi-screen display installations.
Installation requires connecting the HDMI source to the input port, attaching the desired HDMI displays to the output ports and supplying power through the included 5V/1A DC adapter.
No software drivers or additional application installation are required for normal operation.

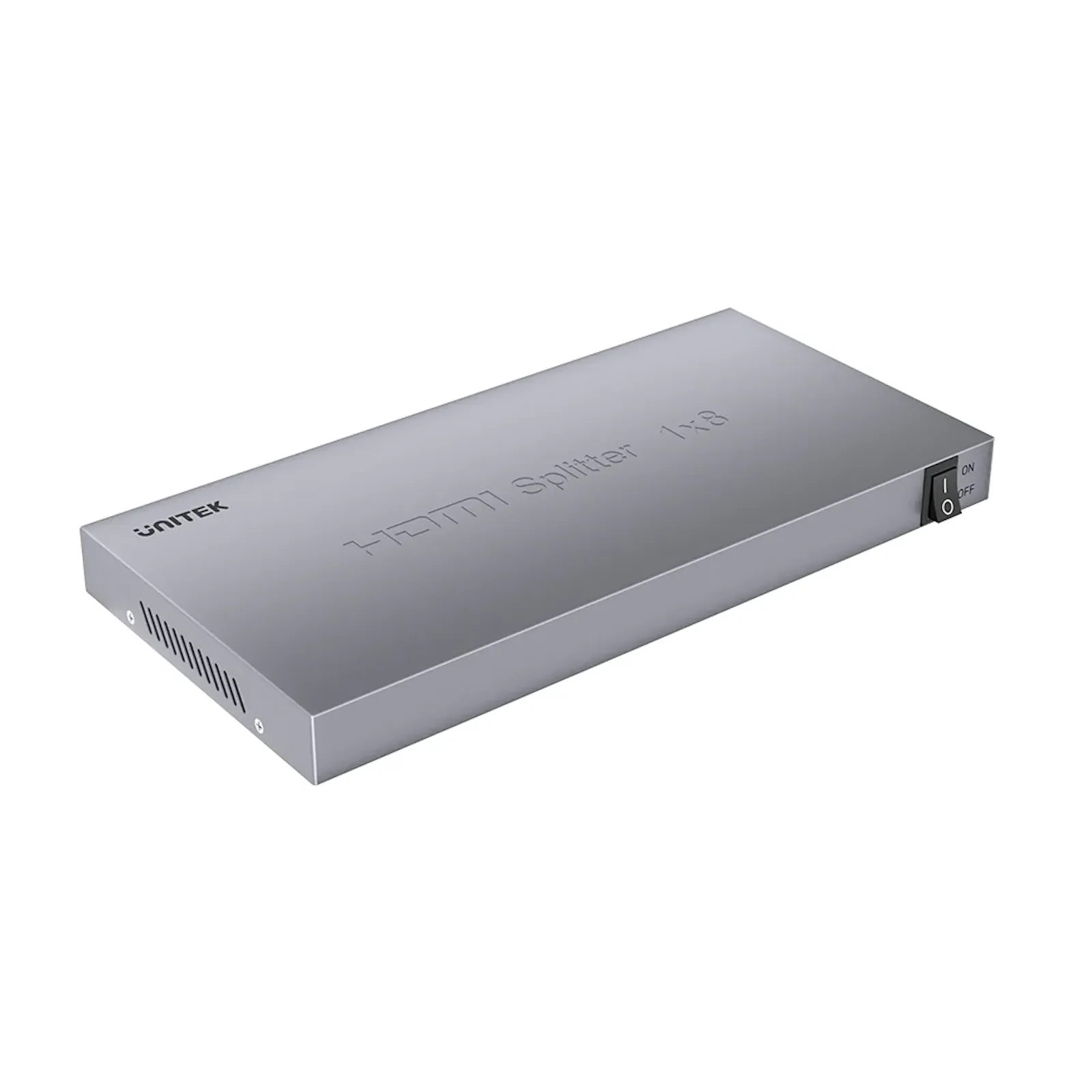

The metal enclosure provides a durable exterior with a professional Space Grey finish, making the splitter suitable for integration into organized AV equipment setups.

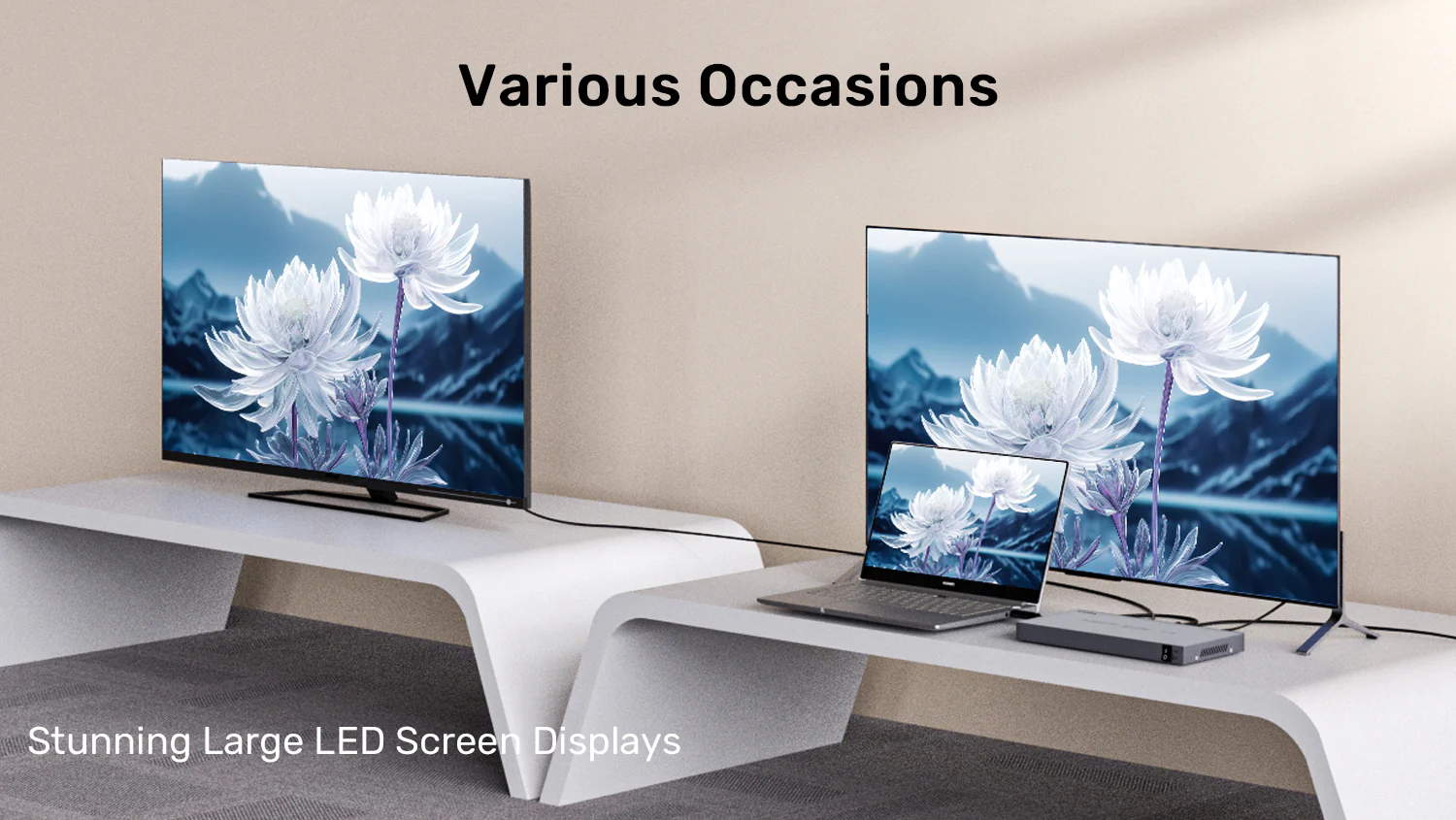

Practical Applications for Business, Education and Home Entertainment

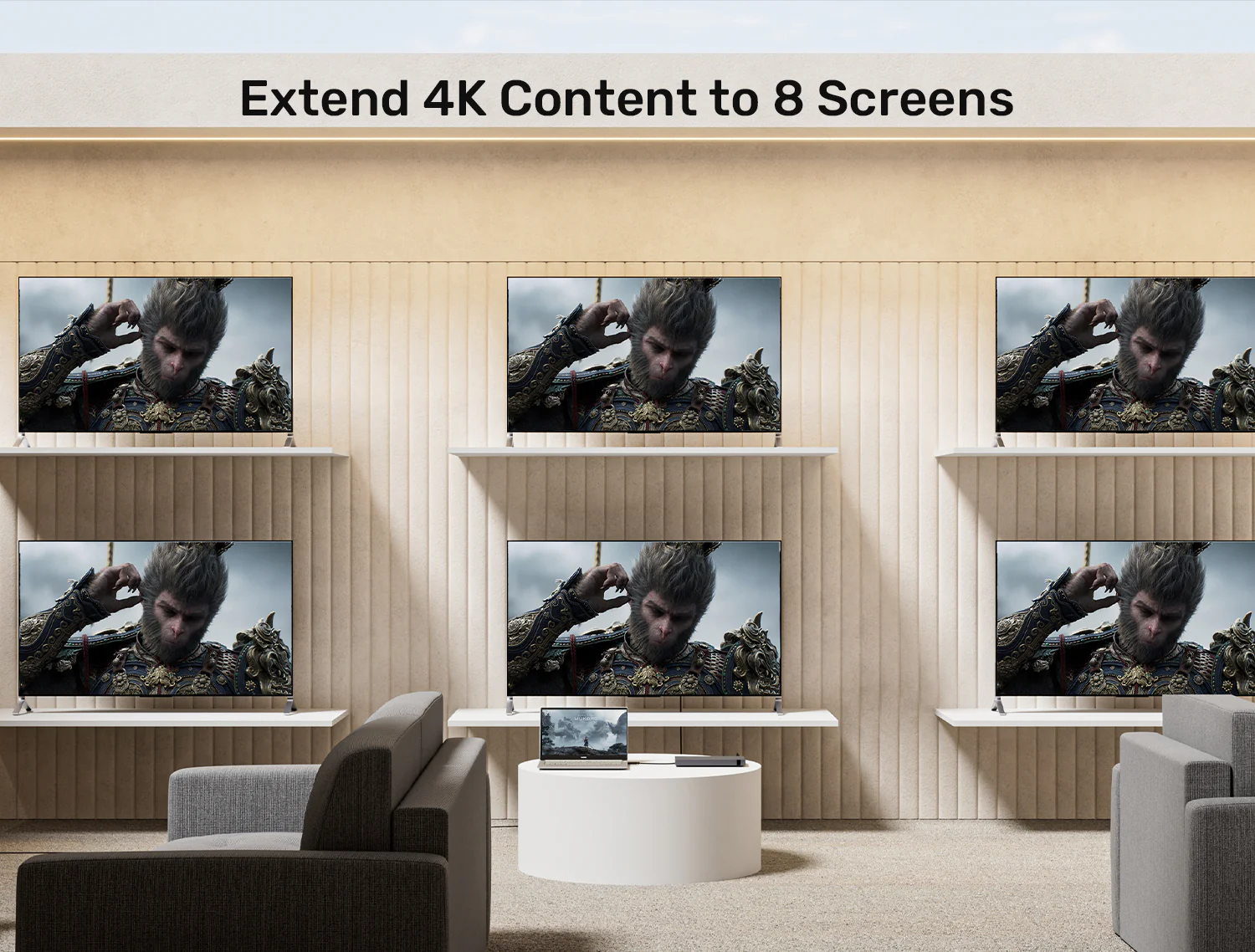

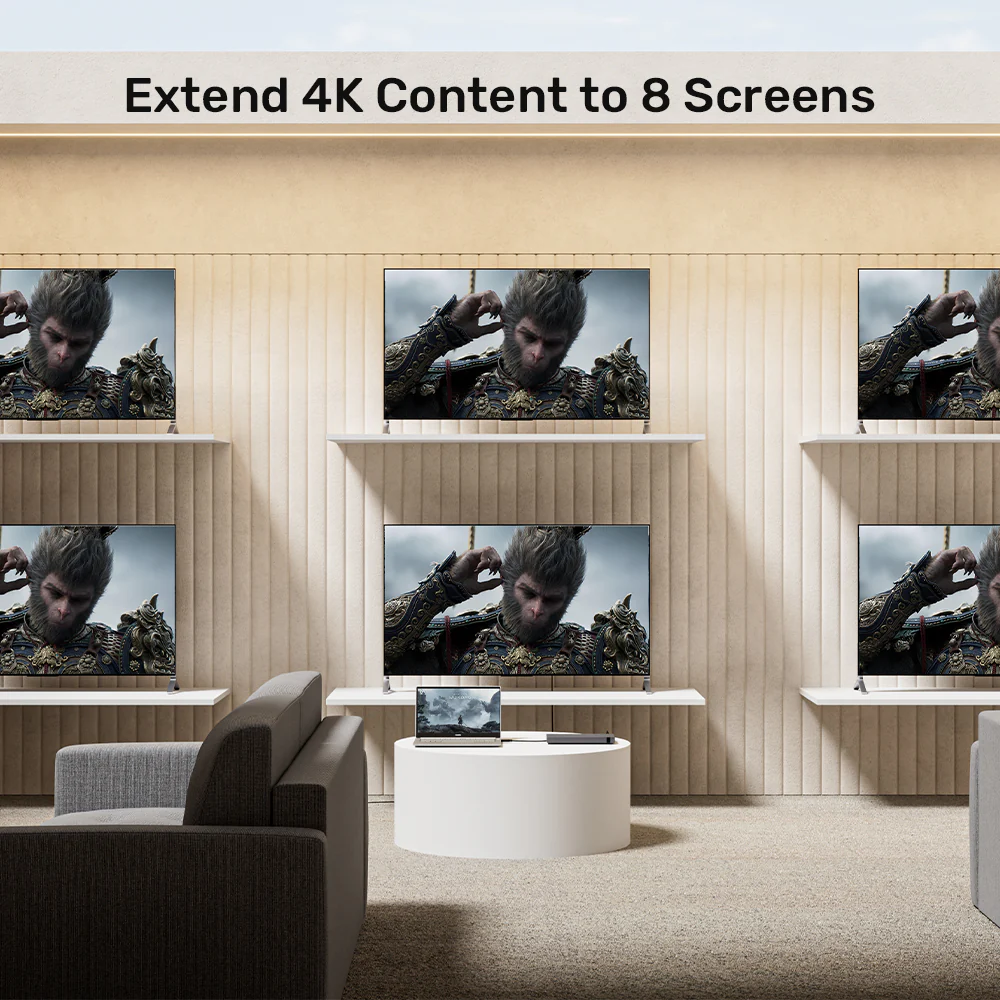

The UNITEK V1132A01-EU is intended for installations where multiple displays need to receive the same HDMI content from one source.
Its eight-output configuration supports several practical applications:

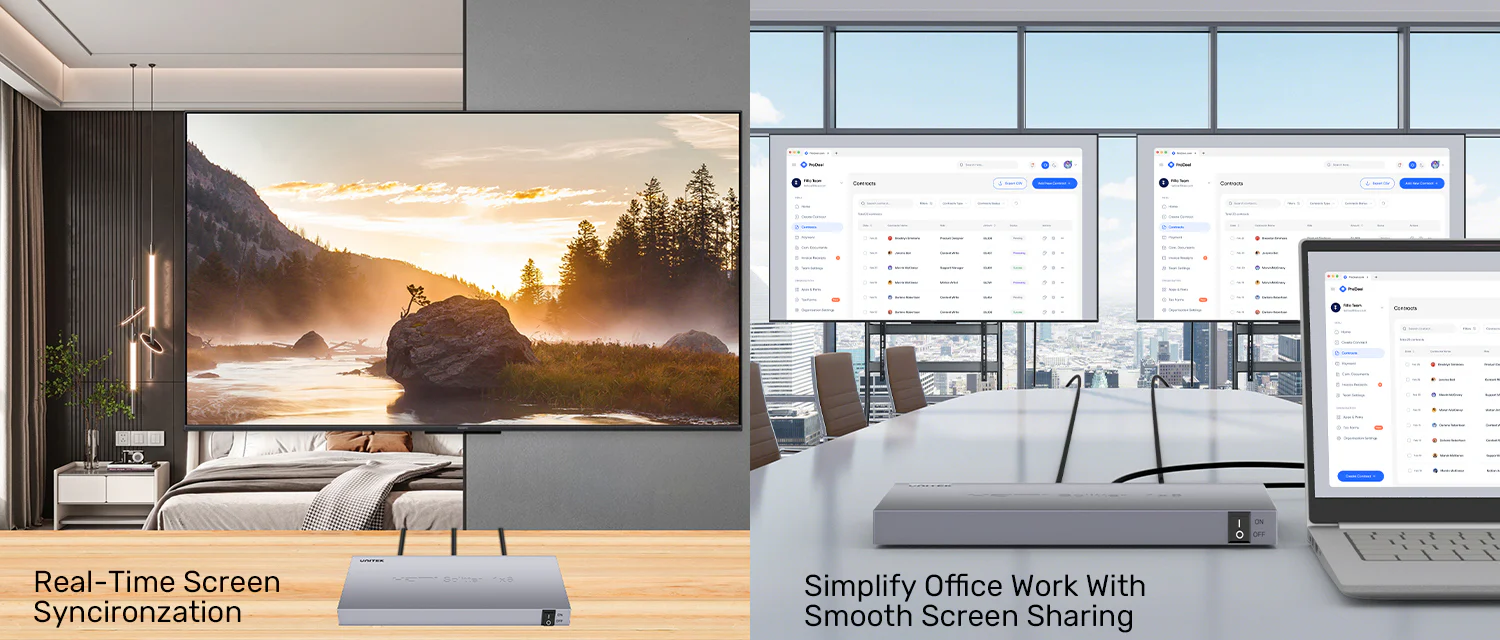

- Conference Rooms: Duplicate presentations and meeting content across multiple screens for improved visibility.
- Digital Signage: Display synchronized promotional or informational videos on several HDMI screens.
- Retail Stores: Distribute advertisements, product demonstrations and promotional content from one media player.
- Educational Facilities: Show instructional material across multiple classroom or training-room displays.
- Healthcare Environments: Distribute suitable informational content to supported display equipment.
- Home Entertainment: Mirror a compatible media player, computer or gaming console across several TVs or monitors.
The splitter is especially useful when a single source must remain synchronized across multiple displays without separate media players for each screen.
Buy UNITEK V1132A01-EU 4K HDMI Splitter in Pakistan
Create a reliable and organized multi-display HDMI setup with one source connected to as many as eight compatible screens.

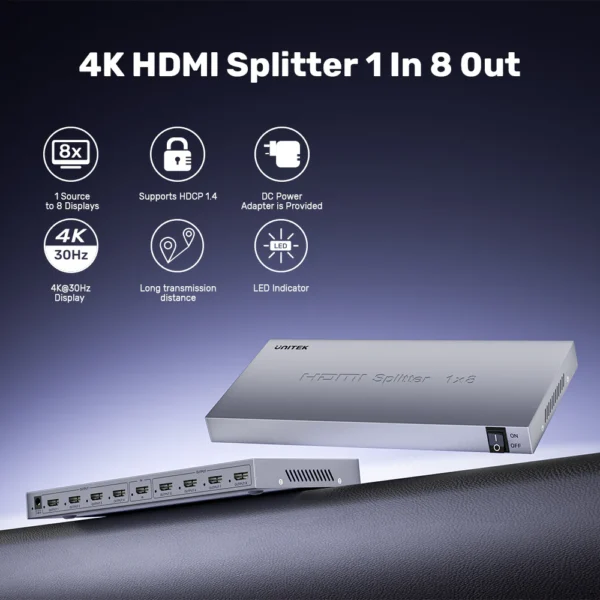

The UNITEK V1132A01-EU combines 4K 30Hz UHD video, HDMI 1.4 compatibility, HDCP 1.4a support, multi-channel HDMI audio and plug-and-play installation in a professional metal enclosure.
It is a practical choice for AV installers, business owners, conference-room administrators, digital signage operators and home users who need simultaneous HDMI signal distribution.
Order the UNITEK V1132A01-EU 4K HDMI Splitter 1 in 8 Out in Pakistan today and simplify your multi-screen presentation, entertainment or commercial display installation.
Check the latest UNITEK V1132A01-EU Price in Pakistan and buy from the Official UNITEK Store in Pakistan for a genuine UNITEK product.
Product Specifications
- Brand: UNITEK
- Model: V1132A01-EU
- Product Type: 4K HDMI Splitter
- Splitter Configuration: 1 Input to 8 Outputs
- HDMI Input Ports: 1 x HDMI 1.4
- HDMI Output Ports: 8 x HDMI 1.4
- Maximum Resolution: 3840 x 2160 at 30Hz
- Additional Resolutions: 2K at 60Hz and 1080p at 60Hz
- 3D Video Support: Full HD 1080p at 60Hz according to supplied specifications
- HDMI Standard: HDMI 1.4
- HDMI Compatibility: HDMI 1.4b, HDMI 1.3 and HDMI 1.2
- HDCP Standard: HDCP 1.4a
- Audio Support: PCM 2-channel, 5.1-channel and 7.1-channel configurations as listed
- HDMI Input Cable Distance: Up to 10 meters / 32.81 feet
- HDMI Output Cable Distance: Up to 15 meters / 49.21 feet
- Specified HDMI Cable: 26AWG HDMI standard cable
- Power Input: DC 5V/1A
- External Power Adapter: Included
- Installation: Plug-and-play
- Driver Requirement: No driver required
- Housing Material: Metal
- Color: Space Grey

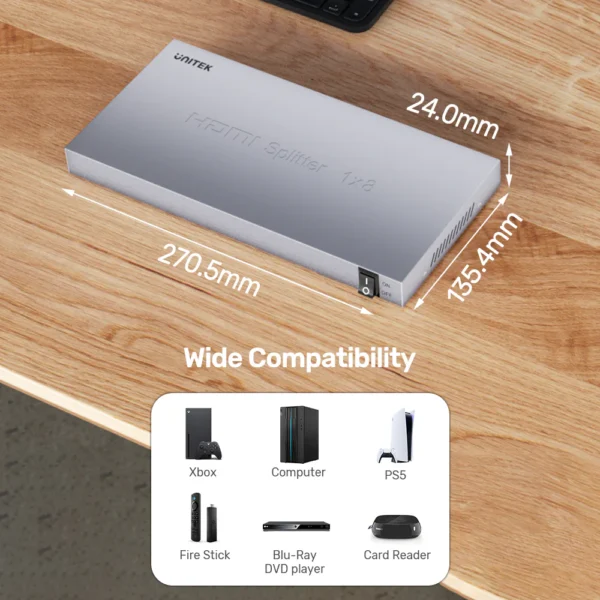

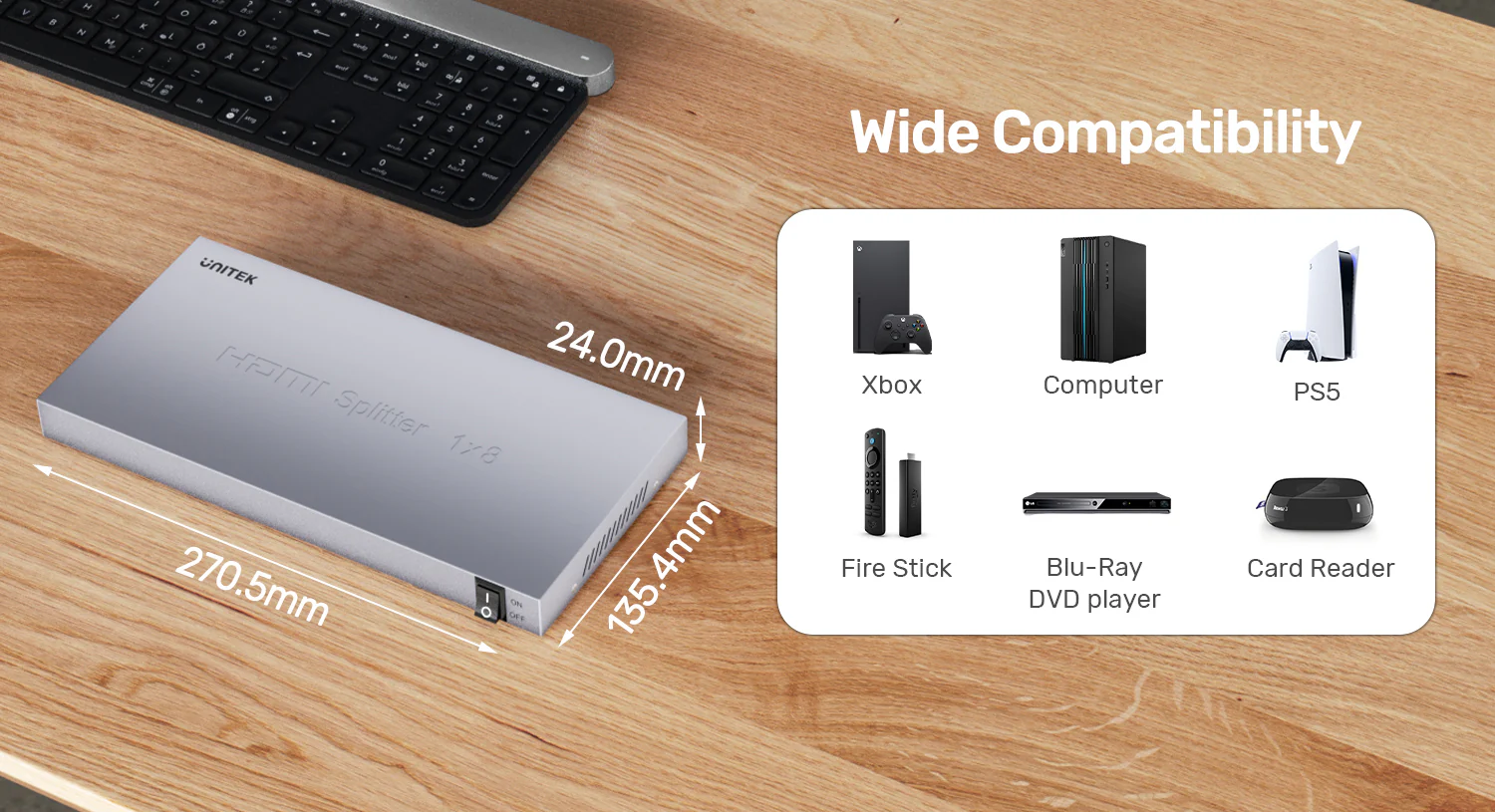

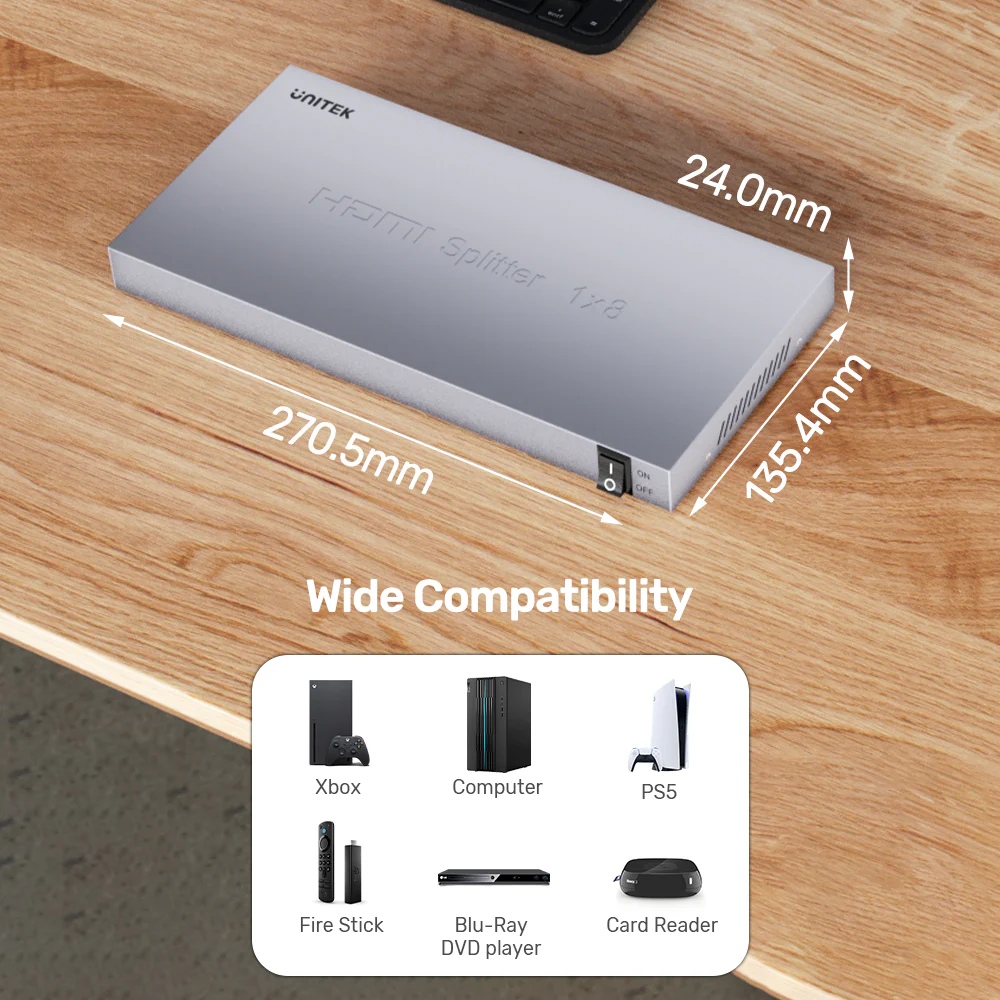

- Length: 270.5 millimeters / 27.05 centimeters / 10.65 inches
- Width: 135.4 millimeters / 13.54 centimeters / 5.33 inches
- Height: 24 millimeters / 2.4 centimeters / 0.94 inches
- Signal Distribution: Identical source signal across connected outputs
- Primary Applications: Conference rooms, digital signage, retail displays, training facilities and home entertainment
Important Notes
- Mirrored HDMI Output: All connected displays receive the same HDMI source content. UNITEK C11072BK-10M 4K Fiber Optic HDMI 2.0 Cable 10 Meter, 4K 60Hz, 18Gbps, HDR, Dolby Vision, ARC, HDCP 2.2 for TV, Projector and Gaming – Black Independent content output is not supported.
- Maximum UHD Refresh Rate: The listed maximum 4K output is 30Hz. Support for 4K at 60Hz is not specified.
- Content Protection: HDCP 1.4a compatibility does not guarantee playback of sources requiring newer HDCP standards.
- Mixed Display Resolutions: Independent resolution scaling for each output is not specified. Select an HDMI output format supported by the connected displays.
- Cable Requirements: Rated transmission distances are based on specified 26AWG HDMI cables and suitable operating conditions.
- Audio Compatibility: Supported audio output depends on the connected HDMI source and receiving equipment.
- External Power Required: Connect the supplied 5V/1A DC adapter for normal operation.
- HDMI Cables: HDMI connection cables are not included in the listed package contents.
- Device Compatibility: Source and display devices must support the relevant HDMI signal format and content-protection requirements.
What’s in the Box
- HDMI Splitter: 1 x UNITEK V1132A01-EU 4K HDMI Splitter 1 in 8 Out – Space Grey
- Power Adapter: 1 x 5V/1A DC Power Adapter
- Documentation: 1 x User Manual
Frequently Asked Questions
Q1: How many displays can I connect to the UNITEK V1132A01-EU?
The splitter supports one HDMI input and eight HDMI outputs, allowing one compatible source to display identical content on up to eight connected screens.
Q2: Does this HDMI splitter support 4K at 60Hz?
No. The supplied specifications list a maximum UHD resolution of 3840 x 2160 at 30Hz. UNITEK C11085GY01-50M 8K Fiber Optic HDMI 2.1 Cable 50 Meter, 8K 60Hz, 4K 144Hz, 48Gbps, Dynamic HDR, eARC, VRR, ALLM for TV, Gaming and Projector – Black Full HD 1080p at 60Hz is also supported.
Q3: Can I show different videos on each connected display?
No. The V1132A01-EU is an HDMI signal splitter that duplicates the same source content across its outputs. It does not create independent video streams.
Q4: Is the UNITEK V1132A01-EU compatible with HDCP-protected content?
It supports HDCP 1.4a. Protected content will work only when the source, displays and required content-protection standards are compatible.
Q5: Can I use this splitter with a gaming console or Blu-ray player?
Yes, provided the HDMI source outputs a supported video format and uses compatible content-protection requirements. UNITEK C11072BK-30M 4K Fiber Optic HDMI 2.0 Cable 30 Meter, 4K 60Hz, 18Gbps, HDR, Dolby Vision, ARC, HDCP 2.2 for TV, Projector and Professional AV – Black The maximum listed 4K refresh rate is 30Hz.
Q6: Does this HDMI splitter support surround-sound audio?
The supplied specifications list PCM 2-channel and 5.1-channel and 7.1-channel audio configurations. Actual audio playback depends on the source and connected equipment.
Q7: How far can the HDMI input and output cables extend?
The rated distances are up to 10 meters for the input and 15 meters for the output when using specified 26AWG HDMI cables. Actual transmission performance may vary.
Q8: Is this HDMI splitter suitable for digital signage and conference rooms?
Yes. It is designed for applications where one HDMI source needs to be duplicated across several displays, including conference rooms, retail signage and presentation environments.
Q9: Does the splitter require software installation or an external power supply?
No software drivers are required for normal operation. UNITEK C11085GY01-15M 8K Fiber Optic HDMI 2.1 Cable 15 Meter, 8K 60Hz, 4K 144Hz, 48Gbps, Dynamic HDR, eARC, VRR, ALLM, HDCP 2.3 for PS5 Xbox PC Projector – Black The included 5V/1A DC power adapter must be connected to supply power.
Q10: Where can I buy the UNITEK V1132A01-EU in Pakistan?
Buy the UNITEK V1132A01-EU 4K HDMI Splitter 1 in 8 Out from the Official UNITEK Store in Pakistan. Check the latest UNITEK V1132A01-EU Price in Pakistan and order today for a genuine UNITEK product. It is a practical solution for synchronized 4K HDMI distribution across up to eight compatible displays.
